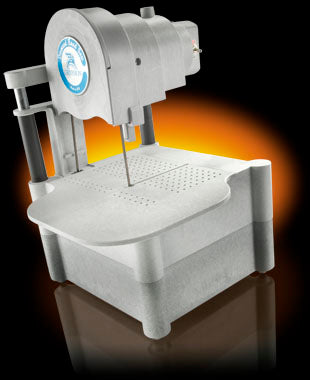

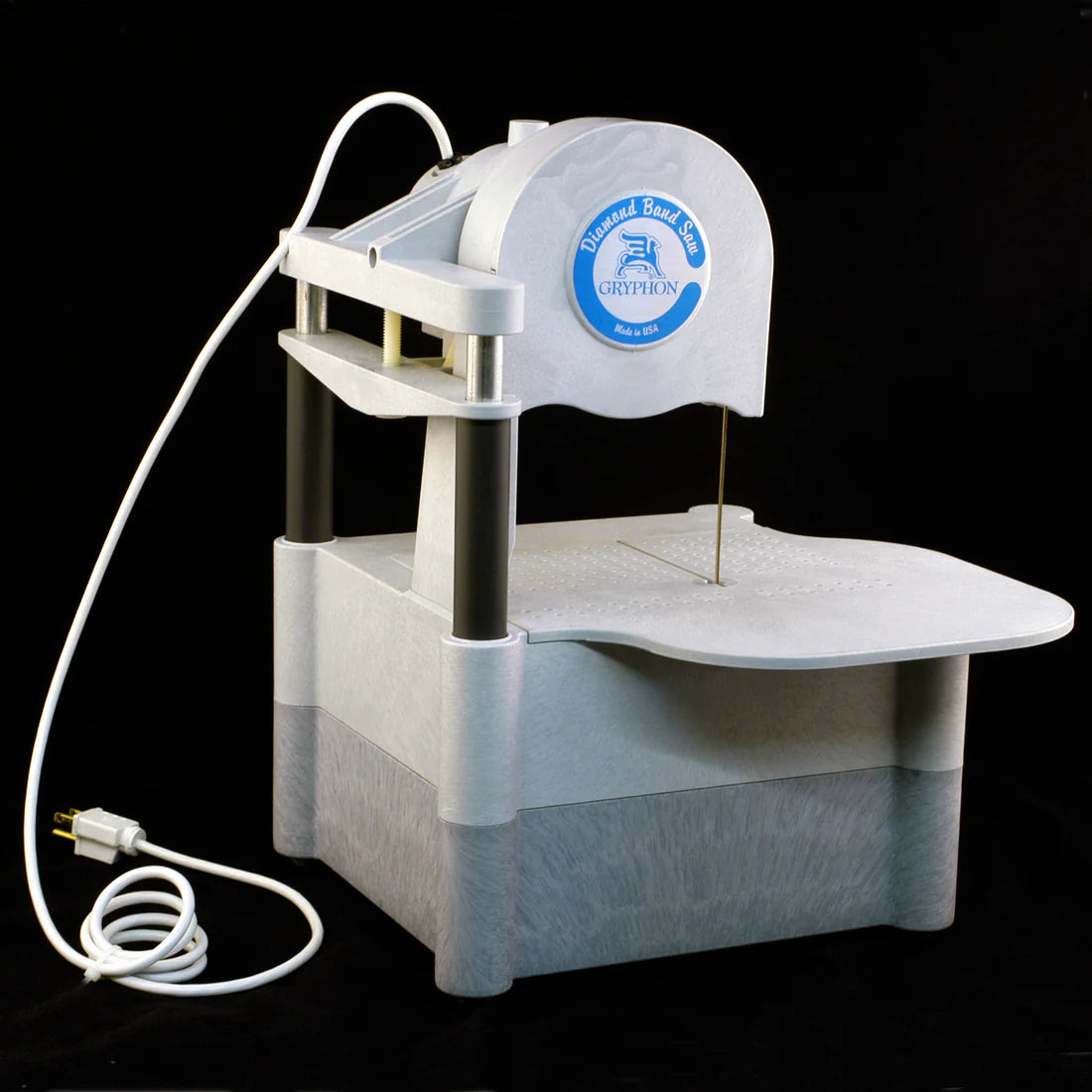

Gryphon C-40 Diamond Band Saw

The Gryphon C-40 is the latest band saw from Gryphon Corporation, the company that invented the whole concept of cutting glass with a band saw over thirty years ago. The...
SKU: GRY-1967
Barcode: GRY-1967
Availability: low stock
Regular price From $500.23
Regular price $595.00 Sale price From $500.23
Unit price $500.23  per  item
Select Voltage: 110V motor with US-style plug
Gryphon C-40 Diamond Band Saw
Regular price $500.23
Regular price $595.00 Sale price $500.23
Unit price $500.23  per  item
Select Voltage: 110V motor with US-style plug
Gryphon C-40 Diamond Band Saw
Gryphon C-40 Diamond Band Saw
Regular price $500.23
Regular price $595.00 Sale price $500.23
Unit price $500.23  per  item

The Gryphon C-40 is the latest band saw from Gryphon Corporation, the company that invented the whole concept of cutting glass with a band saw over thirty years ago. The hallmarks of this new diamond saw include very fast cutting and the best reliability in the industry.

Key Features:

  • Durable 37" long diamond coated copper blade makes intricate cuts in glass, tile and stone!
  • Simple construction with few moving parts
  • New High Speed Motor for fastest cutting available
  • Direct drive - no belts or pulleys
  • Powerful motor located on top, away from the water
  • Huge water reservoir under the work surface
  • One square foot of unobstructed work surface
  • Under table blade guide and new blade guide above table
  • INCLUDES one Standard Blade for art glass and tile cutting
  • Fuser's Blade for shaping multiple layers of fused glass is available separately
  • Stainless steel blade for coral fragging is available separately
  • Select 110V motor and US-style plug or 230V motor with EU-style plug
  • Full One Year manufacturer warranty
  • Made in the USA!



Specifications
Motor 1/3 hp Direct Drive DC
Voltage 110 or 220VAC
Frequency 50/60 hz
Current 1 amp at 110V; 5 amp at 220V
Motor Speed 2,200 rpm
Blade Speed 40 mph
Platform Area 12"x12"
Saw Height 17-5/8"
Throat Depth 5-1/4"
Throat Height 2-5/8" with upper blade guide installed
Maximum Throat Height 3-7/8" with upper blade guide removed
Coolant System Recirculating tap water
Coolant Reservoir 10"x9"
Tension Adjustment Single Knob - Semi-automatic
Blade Dimensions 37" circumference, 0.020" wide, 0.140" deep
Shipping Weight 18 lbs
Manufacturer Gryphon Corp.
Warranty 1 Year
Model C-40
