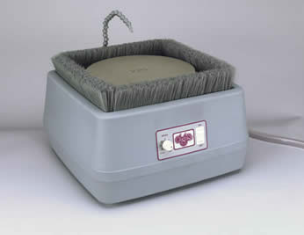

Glastar (B12) 12" Diamond Disc Grinder
Glastar (B12) 12" Diamond Disc Grinder

Glastar (B12) 12" Diamond Disc Grinder
DISCONTINUED
Glastar (B12) 12" Diamond Disc Grinder
When looking for an exceptional diamond grinder, you can’t go wrong with the Glastar Disc Grinder model B12, which offers the fastest and most economical way to grind glass or stone. Featuring a large 12" grinding surface and a powerful high-speed motor, this glass grinder pays for itself in a very short time. The B12 Disc Grinder is the only 12" lap that is direct drive. It does not rely on belts or pulleys. Instead, it employs a huge 3/4 HP motor that does not lose speed even during heavy continuous use.
This beveler is also available with a 1/3 HP variable speed motor, which makes it possible to keep the speed of the disc as slow as possible for polishing and yet stays above the minimum recommended grinding speed. Grinding at too slow of speed reduces diamond life and makes getting the work done take that much longer.
A magnetic holder holds the grinding and polishing pads in place, but takes only seconds to change out.
NOTE: This machine does not include any grinding discs or accessories, each must be purchased separately.
Key Features of the B12 Disc Diamond Grinder Are:
- Magnetic Disc Holder
- 3/4 HP Fixed Speed or 1/3 HP Variable Speed Motor (select below)
- 115V or 230V Motor (select below)
- Splash Guard
- Adjustable Coolant System
- Pump Receptacle
- Rugged Construction
- Available 70, 120, 220, 400 and 600 grit Diamond Grinding Pads (sold separately)
- Available Diamond Resin and Polyester Felt Polishing Pads (sold separately)
- Available Recirculating Water Pump (sold separately)
- Available Cerium Oxide and EZ Grinder Coolant (sold separately)
NOTE: Not available since 10/2021
| Specifications | |
| Base construction | 3/16" steel plate |
| Body construction | 3/16" molded polyethlene |
| Drive shaft: mounting | magnetic hub with 1/2" centering pin |
| Drive shaft: rotation | counter clockwise |
| Drive shaft: type | direct drive |
| Electrical | 115V - 50/60Hz - 8.8A |
| Electrical | or 230V - 50/60Hz - 4.4A |
| Motor: power | 3/4 HP Fixed Speed |
| Motor: power | or 1/3 HP Variable Speed |
| Motor: type | permanent split capacitor |
| Motor: bearings | sealed ball bearings |
| Motor manufacturer | Fasco |
| Speed at 50Hz | 895 rpm |
| Speed at 60Hz | 1,075 rpm |
| Maximum torque | 70 oz.-ft. |
| Grinder style | disk |
| Disk size | 12" diameter |
| Overall dimensions | 19" X 20 1/2" X 9 1/2" high including plumbing |
| Weight | 36 lbs. |
| Manufacturer | Glastar Corporation |
| Glastar Model # | B12 |
| Glastar Product # for fixed speed at 115V | P33445 |
| Glastar Product # for fixed speed at 230V | P33446 |
| Glastar Product # for variable speed at 115V | P33506 |
| Glastar Product # for variable speed at 230V | P33507 |
