Diamond Max Elite Deluxe 2 in 1 Grinder

The first glass grinder to combine a flat diamond disk for straight edges with a router style bit for curves. Bit and disk run simultaneously - you don't have to...
SKU: DIA-53A19
Barcode: DIA-53A19
Availability: low stock
Regular price $378.22
Regular price $499.95 Sale price $378.22
Diamond Max Elite Deluxe 2 in 1 Grinder
Diamond Max Elite Deluxe 2 in 1 Grinder
Regular price $378.22
Regular price $499.95 Sale price $378.22

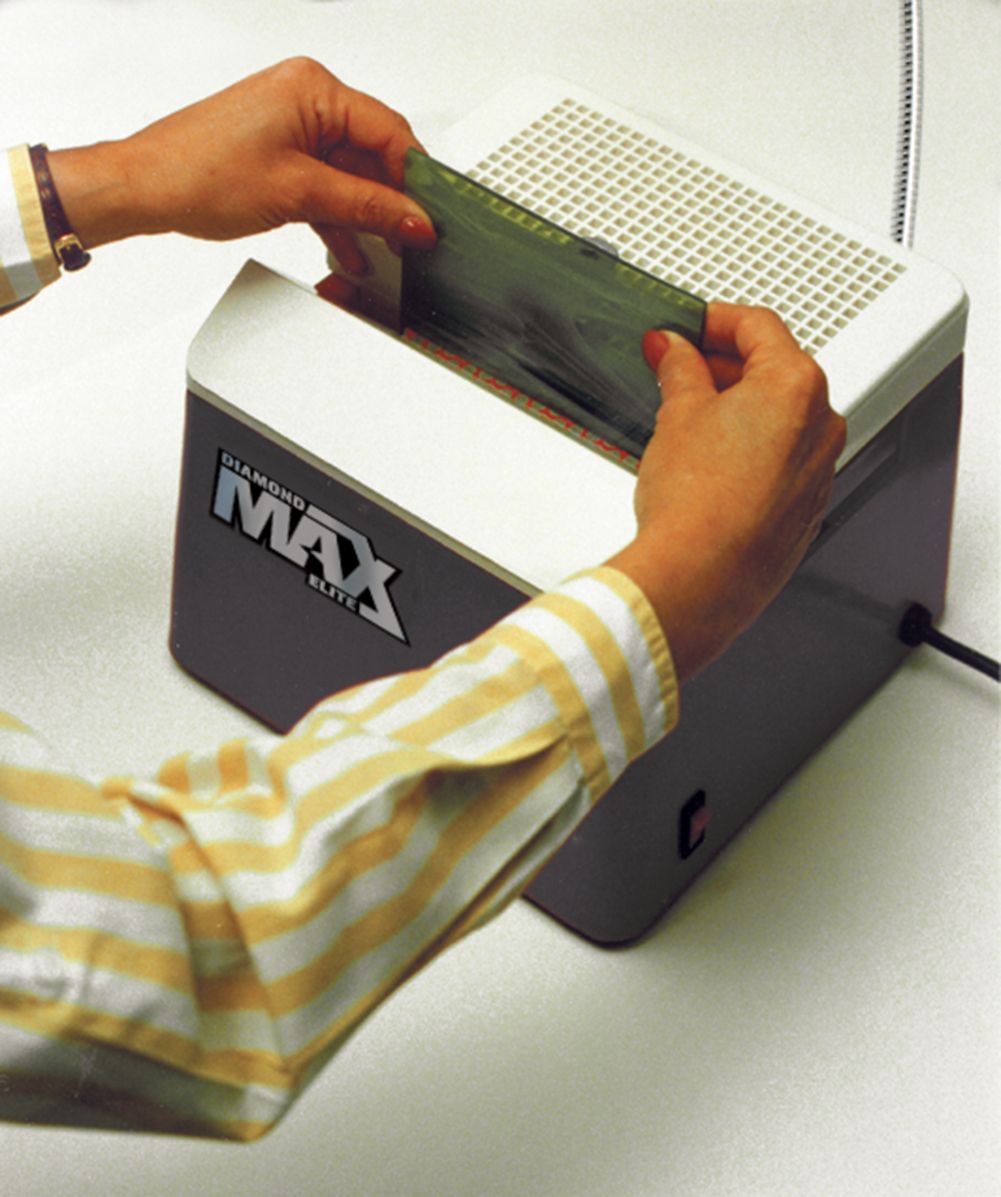

The first glass grinder to combine a flat diamond disk for straight edges with a router style bit for curves. Bit and disk run simultaneously - you don't have to stop and switch back and forth.

Key Features of the Diamond Max Elite Deluxe 2 in 1 Grinder are:

  • Cool GRAY color
  • Built-in Light
  • Shape/grind curves in seconds with the router bit
  • Create perfect fitting beveled edges with the Bevel Block
  • Flat disk makes exact straight edges every time
  • One of the longest warrantied, most powerful tools in glass!
  • Great for fusing projects!
  • Grow with your grinder - can be converted into a beveler for creating custom bevels>
  • INCLUDES Diamond Max Elite 2 in 1 Grinder (DIA-5119)
  • INCLUDES Easy-on Foot Switch (DIA-0420
  • INCLUDES 6" 260 Grit Diamond Disk DIA-560
  • INCLUDES Three Chrome Hardened Silver Bullet Bits (1", 3/4" and 1/4") (DIA-0410, DIA-0350, DIA-0600)
  • INCLUDES 30/45 Degree Bevel Bloc
  • Powerful 1/8HP Motor
  • Advanced Super Sponge™ water-cooling system
  • Easy Glide Work Surface
  • Full 6 Year Warranty - the longest in the industry!

NOTE: Available with a 220V motor as a SPECIAL ORDER.  Please allow 1-2 weeks for shipment.


Specifications
Motor Powerful 1/8HP
Work Surface 9" x 5-1/2" Easy Glide Work Surface
Cooling Advanced Super Sponge™ water-cooling system
Includes Easy-On Footswitch
Includes 30/45 Degree Bevel Block
Includes 6" 260 Grit Diamond Disk
Includes 1" Chrome Hardened Silver Bullet Bit
Includes 3/4" Chrome Hardened Silver Bullet Bit
Includes 1/4" Chrome Hardened Silver Bullet Bit
Warranty Full six year warranty
Manufacturer Diamond Tech International
DTI Item No. 53A
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dustin TheWind

Better than 4 stars but not quite a perfect 5. This grinder is a bit of an enigma. No body talks about it. No one mentions it when ppl ask what grinder to get. It doesn’t show up on lists of “top 5” or anything. But it needs to be! I wanted to award this grinder 4.5 out of 5 but can’t do half stars it seems.
I feel like this grinder is a sleeper.

Pros: Its footprint is small, the package I got came with 3 sizes of grinder bits, a light, and foot pedal.

That foot pedal is awesome! Excellent add on.

The light is adjustable and spots light right where you need it without inducing a glare.

The sponge is unique and feels like it will last a while. Im not sure if it’s quite “super” but it’s clearly better than the normals soft porous ones. I don’t love sponges in general but It works just fine at the end of the day.
I’ve always found sponges a little finicky and always felt like it was a “good enough” solution that ppl just went with. But it’s simple and effective and less moving parts to fail over time can been seen as a plus.

The grinder disc is an amazing feature and a big reason why I opted for this over a gryphon twister or “the grinder 1 or 2”.
To be able to flatten out long lines is a great tool to have available without needing a second machine. Ive not used it for making bevels yet but am excited to lean into that aspect at some point or another.

Im glad they changed the body color to gray. I would not have purchased it if it was still red. Silly sure but true.

Clean up is pretty straight forward. I take it apart after every use. I’ll spray off the glad mud with the hose (set to mist setting on the sprayer) and careful not to spray under where the grinder wheel rests or the cables.

Motor is *very* quiet, does not bog down if excessive force is used, and has 6 year warranty. Which is super excellent! Catch this piece on sale for a terrific value.

CONS:
Setup out the box and after cleaning can be a little finicky. The grinder disc wheel for instance. It rests on a little fitting. If that fitting is pushed all the way down, the disc rubs on the grinder body and might not even spin due to how much contact it’s making. So if you loosen it and scoot it up a tiny bit, you quickly run into the disc rubbing on the water holding basin. There is about a 2mm “sweet spot” where the disc is not making contact with the top or bottom of the housing. And once it’s set to this perfect height, you’re off to the races and everything works perfect. Just a *very* small window of acceptable placement. May take a few tries to get it just right. This is worth a slight ding to the star rating but it’s worth more than 4 stars.

I did take a small hand powered drill bit to slightly enlarge the two drain holes that drip water onto the grinder wheel when using it. This was mentioned from other users in reviews and was surprised to see it mentioned in the instruction manual as well. Maybe they should just produce them with enlarged holes already?
Also having to take off the waffle top to remove the plug for the grinder disc is a strange choice. I could easily see how they could have left an opening over that plug to get a finger in to pull that without having to remove the entire top for access to the slide plug thing.

While using the grinder disc there is a slight possibility that if you drop that piece it will get sucked into the disc housing area. This happened to me once already and I had to recut that piece due to heavy scratches from the event. I shut it off and that’s when I learned you cannot get into the machine without having to pull the grinder bit off the motor shaft. So you will need to keep that little Allen key with the machine when using it. Maybe tape it to the side or something so it’s always there when needed. It’s a 2.5mm Allen key if you want a better tool for it.

After use, it’s advised to remove the bit to prevent it from getting cemented on. So I take it apart after use, clean, dry, and re-treat with anti seize.
The sponge. I don’t love the sponge. Maybe I don’t know how to use it just right but it always feels janky to me. It’s doing its job but I’m not sure how to best set this thing up. It seems a strange size. Both too small and too big?? Do I fold it? Do it just lean on it, longways it tall ways? Im not sure. This was the one thing I didn’t like from the get go. I wanted a water pump or brushes comparatively. But pumps can fail and brushes might not deliver enough water so it’s worth considering.

The 1/4 grinder bit also confuses me. It seems like it’s meant to sit on the top of the other bit to make a double stack, but how do I use it? No water touches it and how do I get the sponge to make contact? The set screw sticks out so it eats chunks out of the sponge and it cant sit low enough on the post by itself to get it where the other bits sit and make sponge contact. So im still trying to figure this one out. Thinkin of makin a drip system to water it from above? Overall 4.5*
