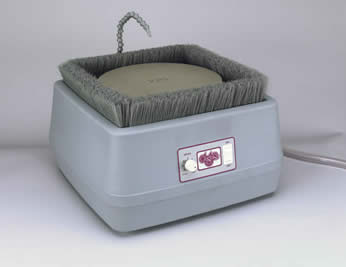

Glastar (B12V) 12" Diamond Disc Grinder Complete System
|
Click to enlarge image(s)
|
The Glastar Disc Grinder model B12 offers the fastest and most economical way to grind glass or stone. Featuring a large 12" grinding surface and a powerful high-speed motor, this grinder pays for itself in a very short time. The B12 Disc Grinder is the only 12" lap that is direct drive. It does not rely on belts or pulleys. Instead, it employs a huge 1/3 HP motor that does not lose speed even during heavy continuous use. The variable speed control makes it possible to keep the speed of the disc as slow as possible for polishing and yet stays above the minimum recommended grinding speed. Grinding at too slow of speed reduces diamond life and makes getting the work done take that much longer.
A magnetic holder holds the grinding and polishing pads in place, but takes only seconds to change out.
Key features of the B12V Complete System are:
- Magnetic Disc Holder
- 1/3 HP Variable Speed Motor
- 115V or 230V Motor (select below)
- Splash Guard
- Adjustable Coolant System
- Pump Receptacle
- Rugged Construction
- INCLUDES 120 grit Diamond Grinding Pad
- INCLUDES 400 grit Diamond Smoothing Pad
- INCLUDES Diamond Resin Pre-Polish Pad
- INCLUDES Polyester Felt Polishing Pad
- INCLUDES 1/2 lb. Cerium Oxide polishing powder
- INCLUDES four (4) blank steel disks
- Available 70 grit Diamond Pad (sold separately)
- Available 600 grit Diamond Pad (sold separately)
- Available Recirculating Water Pump (sold separately)
- Available 10 lbs. or 44 lbs. Preium Cerium Oxide (sold separately)
- Available 1 gallon EZ Grinder Coolant (sold separately)
NOTE: Not available since 10/2021
Base construction
|
3/16" steel plate
|
Body construction
|
3/16" molded polyethlene
|
Drive shaft: mounting
|
magnetic hub with 1/2" centering pin
|
Drive shaft: rotation
|
counter clockwise
|
Drive shaft: type
|
direct drive
|
Electrical
|
115V - 50/60Hz - 8.8A
|
Electrical
|
or 230V - 50/60Hz - 4.4A
|
Motor: power
|
1/3 HP Variable Speed
|
Motor: type
|
permanent split capacitor
|
Motor: bearings
|
sealed ball bearings
|
Motor manufacturer
|
Fasco
|
Speed at 50Hz
|
895 rpm
|
Speed at 60Hz
|
1,075 rpm
|
Maximum torque
|
70 oz.-ft.
|
Grinder style
|
disk
|
Disk size
|
12" diameter
|
Overall dimensions
|
19" X 20 1/2" X 9 1/2" high including plumbing
|
Weight
|
36 lbs.
|
Manufacturer
|
Glastar Corporation
|
Glastar Model #
|
B12
|
Glastar Product # for variable speed at 115V
|
P33506
|
Glastar Product # for variable speed at 230V
|
P33507
|
