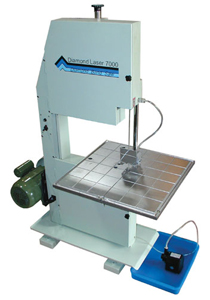

Diamond Laser 7000 Heavy Duty Wet Band Saw
![Diamond Laser 7000 Heavy Duty Wet Band Saw Diamond Laser 7000 Heavy Duty Wet Band Saw](/account/images/image.img?color=6a778f&text=333333&accent=6a778f&compliment=348fca&navigation=ffffff&heading=333333&title=333333&logo=6a778f&link=0a1466&picture.image.url=%2Ffiles%2F3866628%2Fuploaded%2F410522.jpg&picture.width.max=304&picture.image.mask.apply=false&stage.width.max=760&cache=1724175718851) |
Click to enlarge image(s)
|
Designed for the studio setting, the Diamond Laser™ 7000 Heavy Duty Wet Band Saw makes precision cuts through marble, granite, tile and glass with ease. The DL7000 is an excellent time saver for artists working in multi-mediums. The easy-to-use features get you cutting quickly, and the large two wheel design creates a 13" throat depth to accommodate glass slab up to 2' wide and 1- 1/2" thick. There are no other saws like the Diamond Laser 7000 on the market today!
Key Features:
- Cuts tile, stone, marble, porcelain and glass tile up to 1-1/2” thick
- Heavy-duty industrial design provides durability for production use
- 3/4 HP motor
- Large 13” throat depth allows for deep diagonal cuts
- Performs precision radius cuts for intricate design work
- Re-circulating water pump keeps saw running clean
- Large 18” x 18” cutting table
- INCLUDES one diamond - coated blade; choose either a standard glass blade or a tile blade, below.
- 7.5mm standard glass blade for cutting art glass, slab glass and glass tile with minimum chipping
- 8.0mm tile blade makes intricate cuts in marble, granite, ceramic, travertine and porcelain
- 94” blade length - continuous band
- Full One Year manufacturer warranty, instruction manual and FREE tech support
- DTI Item Number: DL0700
*Ships via FREIGHT = please allow 7-10 days for delivery
Motor
|
3/4 HP single speed
|
Voltage
|
110V
|
Amperage
|
7.9 Amps
|
Motor Shaft Speed
|
1,400 rpm
|
Length
|
38" (with table)
|
Height
|
48"
|
Weight
|
162 lbs. (73.5 kg)
|
Table Size
|
18" x 18"
|
Throat Depth (depth of cut into field)
|
13"
|
Throat Height
|
8.5" maximum
|
Blade Length (continuous band)
|
94.25"
|
Blade Thickness (kerf)
|
0.025" (0.64 mm)
|
Blade Depth - Tile
|
0.35" (8.0 mm)
|
Blade Depth - Glass
|
0.30" (7.5 mm)
|
Minimum Radius Cut
|
1/2" - 3/4"
|
Max. Cutting Thickness - marble/granite
|
1-1/2"
|
Max. Cutting Thickness - concrete/limestone/glass
|
2"
|
Cutting Speed - 3/4" Marble
|
8"/minute
|
Cutting Speed - 3/4" Slab Glass
|
12"/minute
|
Blade Life Estimate - 3/4" Marble
|
40 - 50 cutting hrs.
|
Blade Life Estimate - 1/4" Glass
|
40 - 60 cutting hrs.
|
Blade Life Estimate - 3/8" Porcelain
|
20 cutting hrs.
|
Manufacturer
|
Diamond Tech International
|
DTI Item No.
|
DL7000
|
